Ajax DoorProtect Plus Jeweller Wireless Opening, Shock & Tilt Detector | North & South American Frequency

Protect doors, windows, and other entry points with the Ajax DoorProtect Plus Jeweller, a professional wireless security detector that combines opening detection, shock detection, tilt detection, and external sensor integration into one compact device. Designed for homes and commercial properties, DoorProtect Plus provides multiple layers of protection to detect break-in attempts before an intruder gains entry.

This product is the North & South American Frequency version designed for use in the USA, Canada, Mexico, and Latin America. It is not compatible with Ajax systems operating on European frequencies.

DoorProtect Plus uses a high-reliability magnetic reed switch to detect when a protected door or window is opened. In addition, the built-in shock sensor detects impacts, vibration, or attempts to force entry, while the tilt sensor monitors changes in position, making it ideal for skylights, roof windows, overhead garage doors, and other movable structures. Each sensing function can be enabled or disabled independently through the Ajax app.

For expanded protection, DoorProtect Plus includes terminals for connecting a third-party normally closed (NC) wired detector, allowing integration with devices such as roller shutter sensors or specialty contacts while still communicating wirelessly with the Ajax hub.

Using Ajax's encrypted Jeweller wireless protocol, DoorProtect Plus communicates securely with compatible hubs over distances up to 3,940 feet (1,200 meters) in open space. Installation is simple with the SmartBracket mounting plate, and all diagnostics, sensitivity settings, firmware updates, and testing are managed remotely through the Ajax Security System app.

Powered by a pre-installed CR123A battery, DoorProtect Plus provides up to 5 years of operation under normal conditions, minimizing maintenance while delivering dependable perimeter protection.

Features

• North & South American Frequency
• Wireless opening detector
• Built-in shock sensor
• Built-in tilt sensor
• Opening, shock, and tilt alarms operate independently
• Supports third-party wired NC detector
• Detects door and window opening
• Ideal for skylights and overhead garage doors
• Jeweller encrypted wireless communication
• Wireless range up to 3,940 ft (1,200 m)

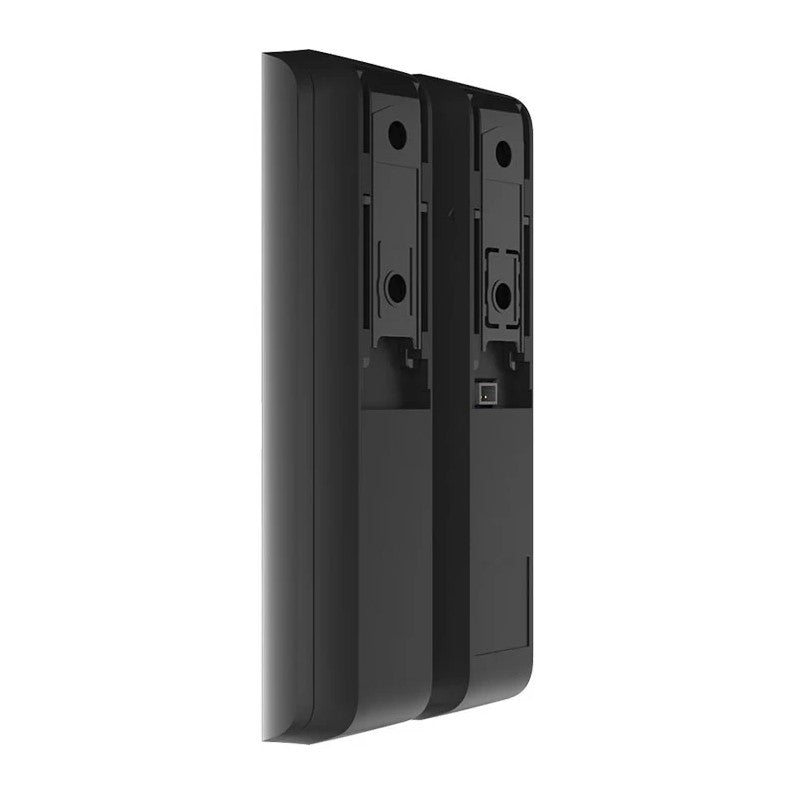

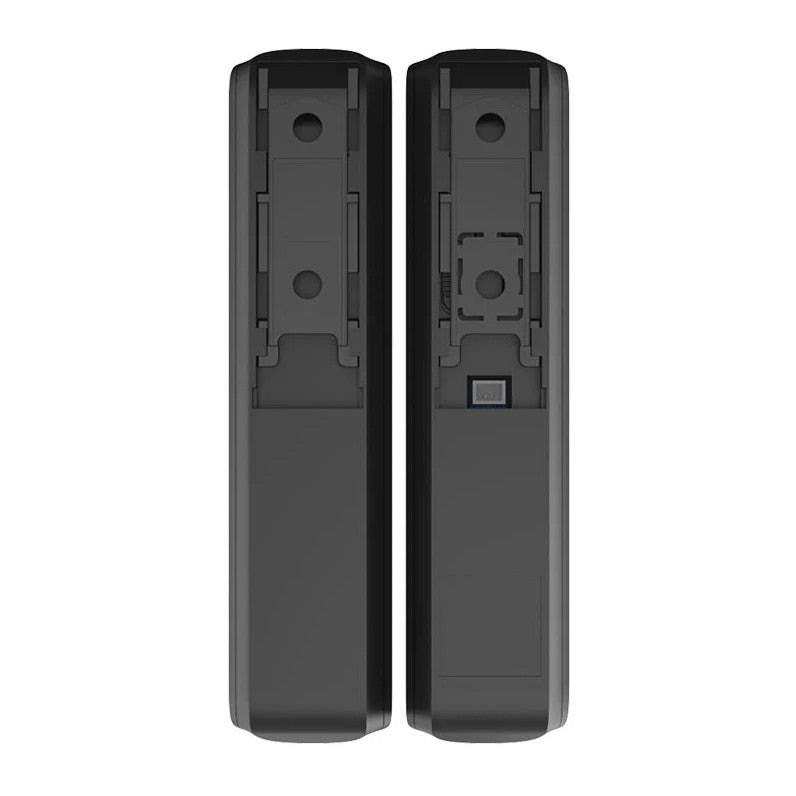

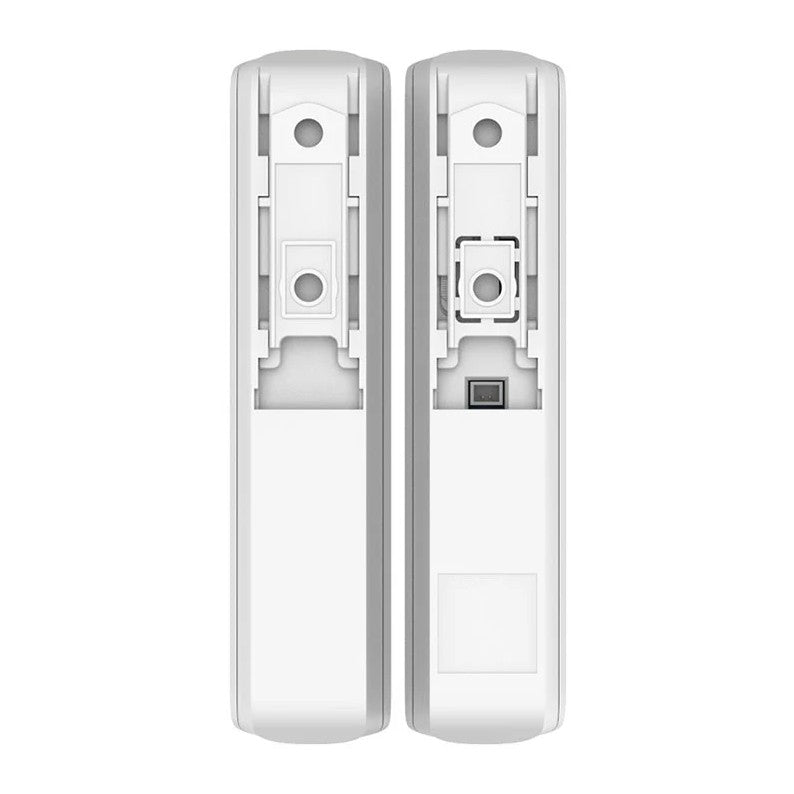

• SmartBracket mounting system
• Tamper protection
• Battery life up to 5 years
• Remote configuration through the Ajax app
• Professional monitoring compatible

Ideal Applications

• Entry doors
• Windows
• Sliding glass doors
• Skylights
• Roof windows
• Garage doors
• Roller shutters
• Retail storefronts
• Offices
• Warehouses
• Commercial buildings
