Ajax KeyPad Plus Jeweller Wireless Security Keypad with Pass & Tag Support | North & South American Frequency

Upgrade your Ajax Security System with the Ajax KeyPad Plus Jeweller, a professional wireless security keypad that combines traditional PIN code operation with secure contactless authentication using Ajax Pass cards and Tag key fobs. Designed for residential and commercial installations, KeyPad Plus provides fast, convenient, and secure system control without sacrificing the flexibility of PIN-based access.

This product is the North & South American Frequency version designed for use in the USA, Canada, Mexico, and Latin America. It is not compatible with Ajax systems operating on European frequencies.

Using DESFire® encrypted contactless technology, users can quickly arm or disarm the system by presenting an Ajax Pass card or Tag key fob to the keypad. Personal PIN codes, shared keypad codes, access codes for temporary users, and duress codes are also supported, making KeyPad Plus ideal for homes, offices, schools, retail stores, and commercial facilities.

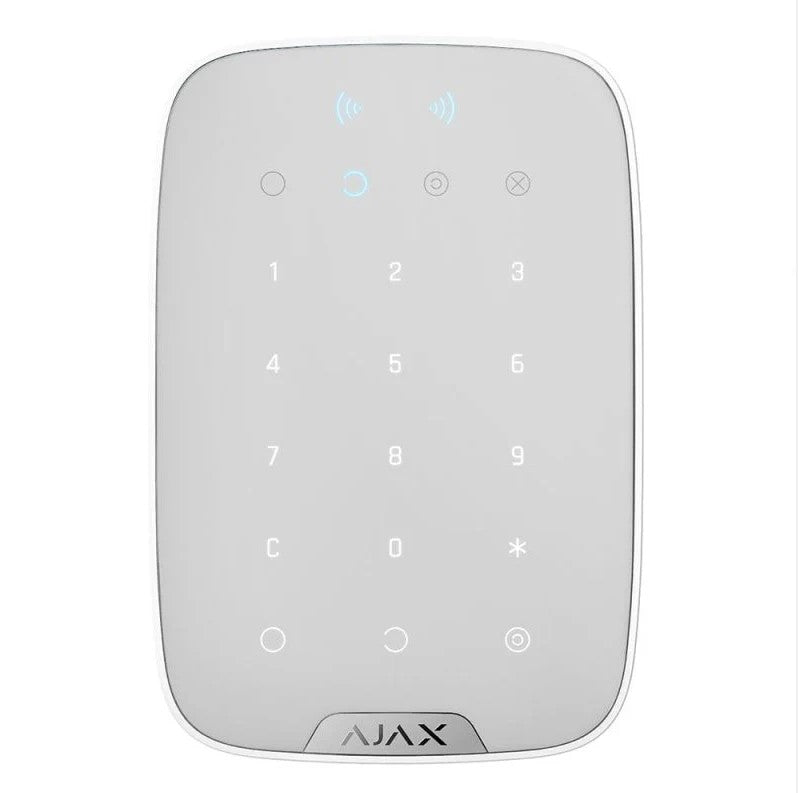

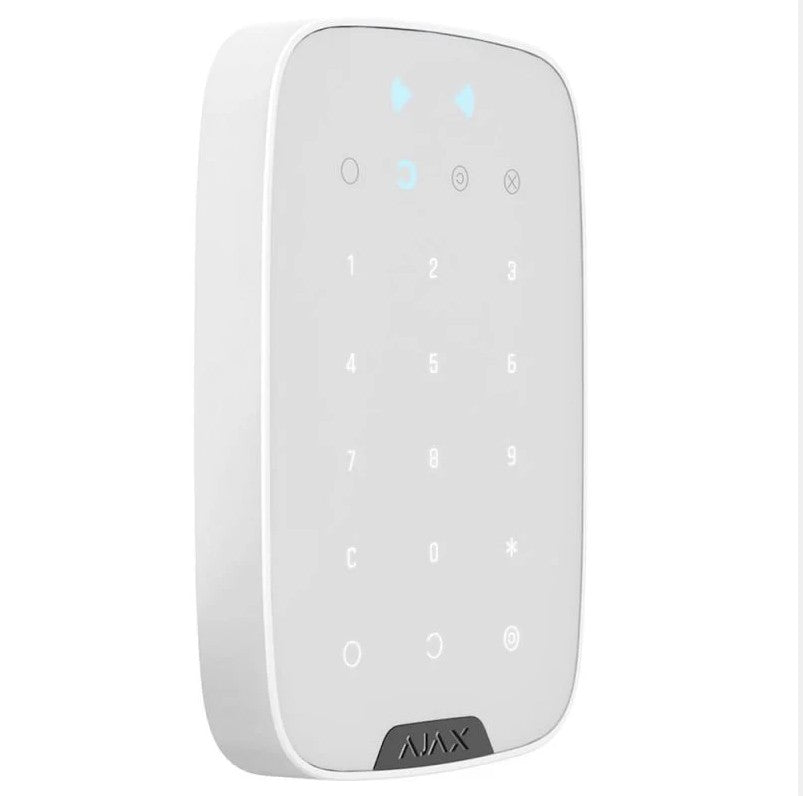

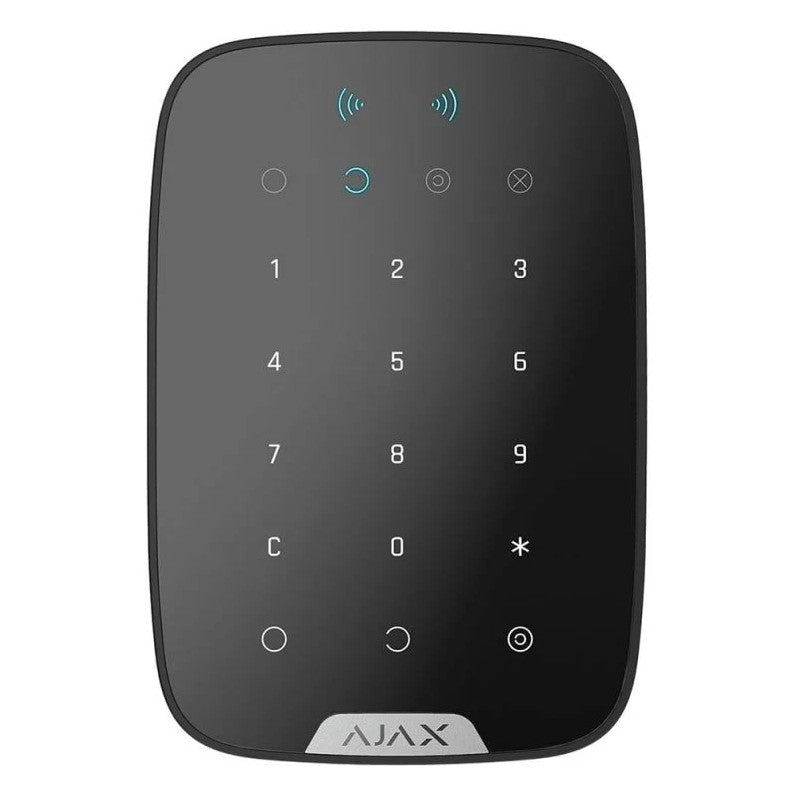

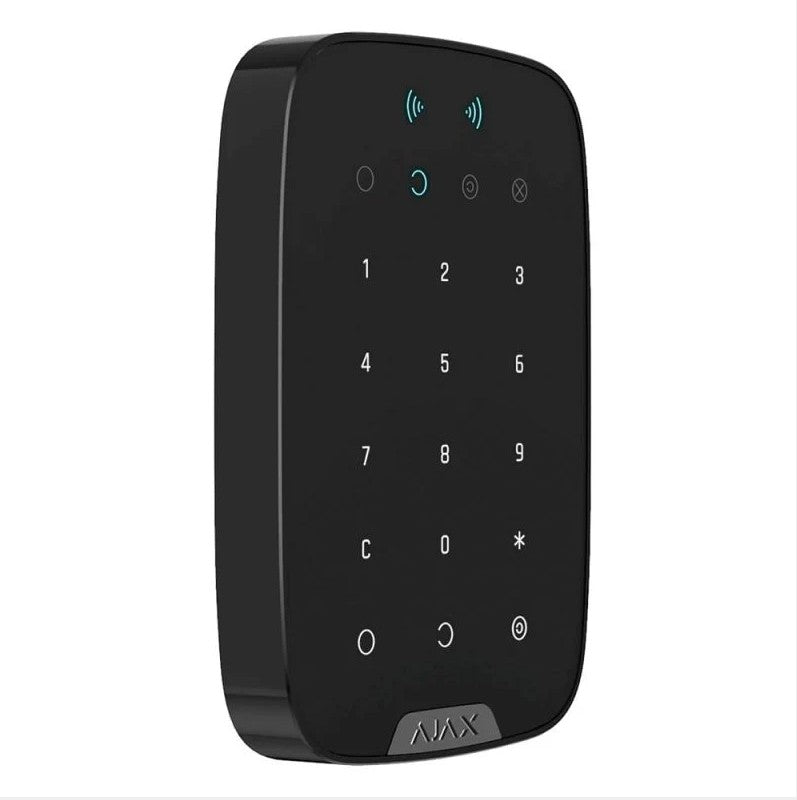

The touch-sensitive keypad features illuminated keys for easy operation in low-light conditions and LED indicators that display the system's current status, including Armed, Disarmed, Night Mode, and system faults. The built-in Function button can also be configured as a panic button or used for custom automation functions.

KeyPad Plus communicates securely with compatible Ajax hubs using the encrypted Jeweller wireless protocol, providing reliable two-way communication over distances up to 5,575 feet (1,700 meters) in open space. All configuration, firmware updates, diagnostics, and user management are handled remotely through the Ajax Security System app.

Powered by four pre-installed AA lithium batteries, KeyPad Plus provides up to 3.5 years of operation under typical conditions, minimizing maintenance while delivering dependable day-to-day security control.

Features

• North & South American Frequency
• Wireless indoor security keypad
• Touch-sensitive illuminated keypad
• Ajax Pass card support
• Ajax Tag key fob support
• DESFire® encrypted authentication
• Personal user PIN codes
• Shared keypad codes
• Temporary access codes
• Duress code support
• Night Mode control
• Configurable Function/Panic button
• Jeweller encrypted wireless communication
• Wireless range up to 5,575 ft (1,700 m)
• LED status indicators
• Tamper protection
• Battery life up to 3.5 years
• Remote configuration through the Ajax app
• Professional monitoring compatible

Ideal Applications

• Homes
• Apartments
• Offices
• Retail stores
• Schools
• Medical offices
• Warehouses
• Vacation homes
• Commercial security systems
